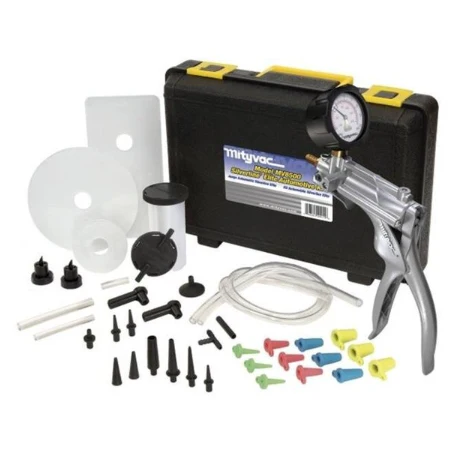

Mityvac MV8500 Silverline Elite Hand Pump Kit

MV8500 Silverline Elite Automotive Kit
Designed with proven features from the renowned Mityvac pumps, the MV8500 Silverline Elite Automotive Kit delivers both vacuum and pressure. The dual capability of the new Mityvac hand pump combines two pumps into one. It will streamline your tool inventory while greatly extending its vehicle service applications.

Used for one-person brake bleeding.
Produces vacuum or pressure at the turn of a switch
Comfortable ergonomic design
One-finger trigger vacuum/pressure release
Pressure and vacuum are created on the squeeze stroke for superior accuracy and control.
Includes durable, accurate diaphragm style compound pressure/vacuum gauge.

Includes:
Silverline Elite hand vacuum/pressure pump w/ 2” (50 mm) compound gauge w/ rubber boot
4.5 oz. (135 ml) fluid reservoir bottle w/ fluid transfer and storage lids
4 Tapered adapters for connecting to tubing from .09” (2.3 mm) to .50” (13 mm) ID
2 Tapered manifold plugs
4 Universal bleed screw adapters
12 Vacuum cap plugs
Vacuum line T-adapter
(2) ¼” (6.4 mm) ID x 24” (610 mm) long connection tubes
5/32” (4 mm) ID x ¼” (6.4 mm) ID tubing adapter
3 Connection tubes
Rubber cupped adapter
Master Cylinder Refill Kit (model no. MVA6825)
Custom Molded Case
User’s Manual (English, French, Spanish, German)

Specifications:

Packaged Weight:
Packaged Size:

Pump Displacement:
Max. Vacuum:
Max. Pressure:
5.5 lbs (2.5 kg)
12.9” (330 mm) x 9.8” (250 mm) x 4.5” (115 mm)
1 cubic inch (16cc) per stroke
25 in Hg (85kPa)
30+ psi (207+ kPa)
