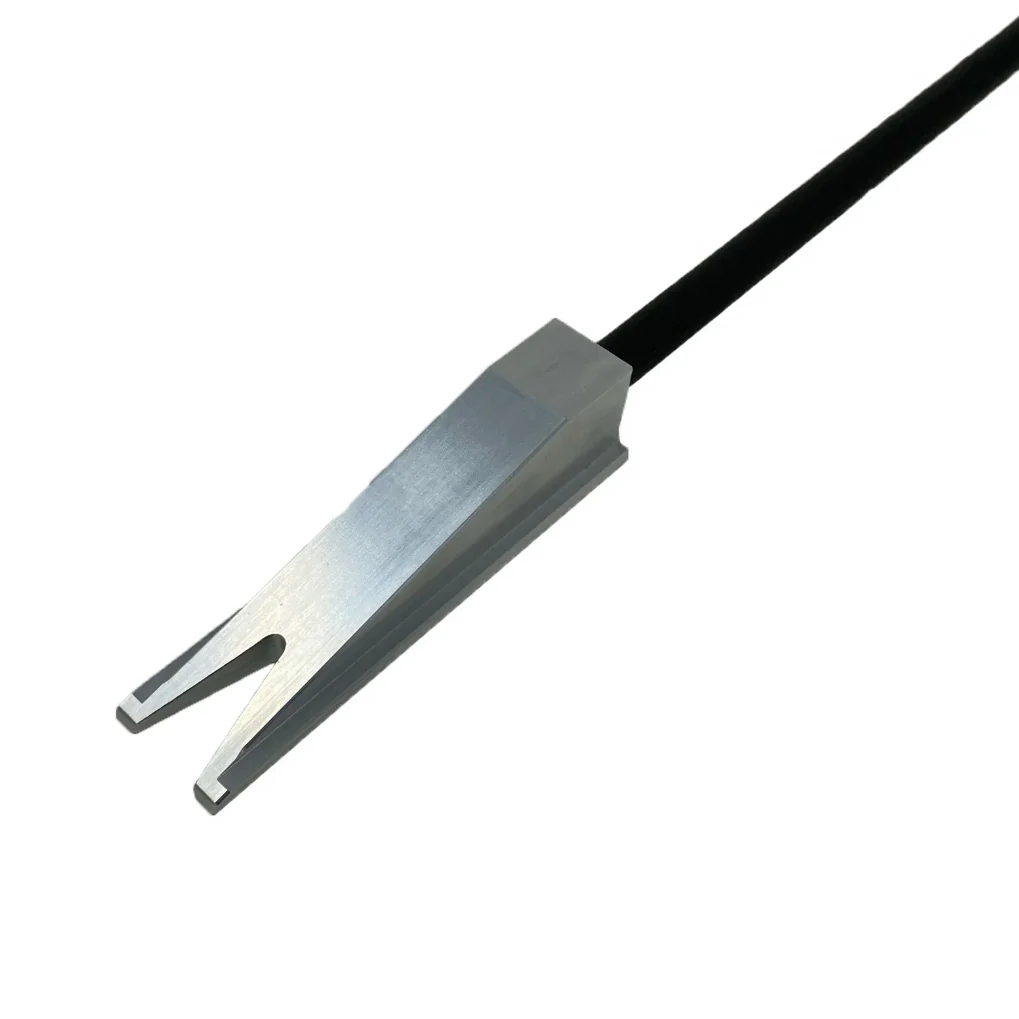

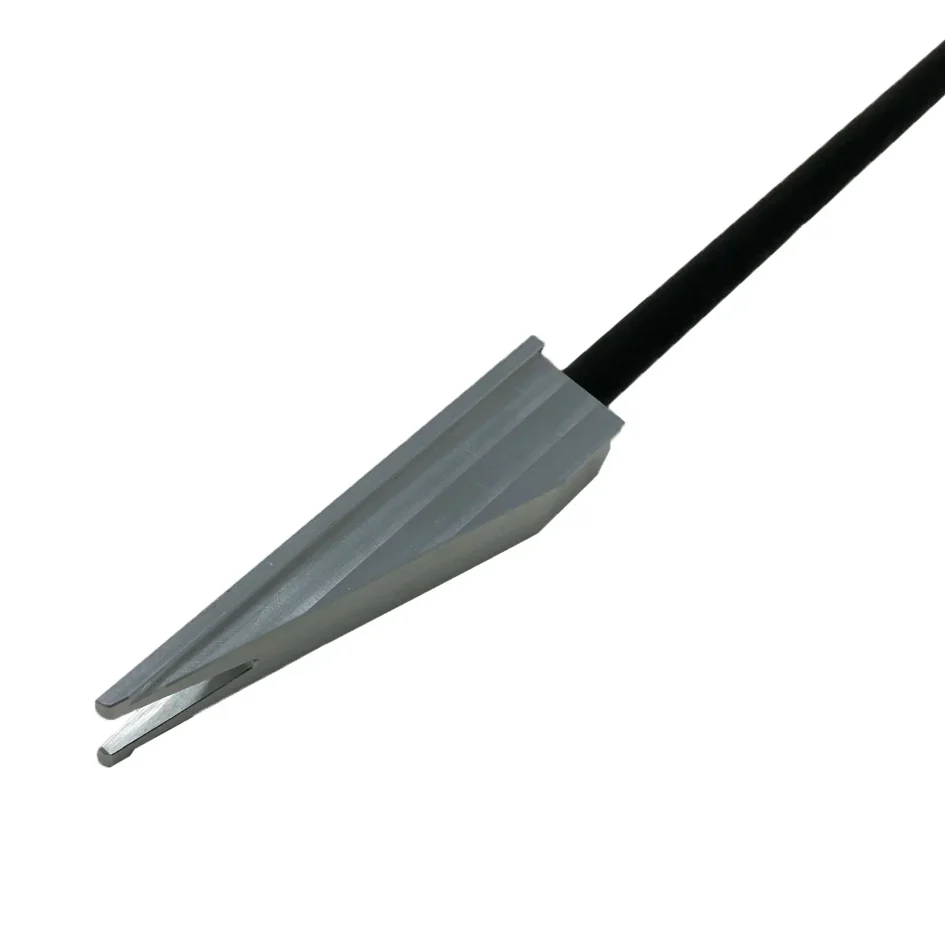

CTA 7459 GM Lower Timing Gear Retainer Wedge - Atlas Engine

CTA Tools 7459 GM Lower Timing Gear Retainer Wedge - Atlas

• Keeps the lower timing gear retainer locked while the cylinder head is removed from engine
• Services I4, I5 & I6 (Atlas) engines
• Without this tool, the disassembly of the lower portion of the engine will increase labor time by 12hrs+ for cylinder head repair
• Make sure to follow the GM Service Bulletin “06-06-01-17C” for using the Lower Timing Gear Retainer Tool
• Failure to do so may lead to damage and additional repair steps not covered by the warranty
• Compare to GM Factory Tool #EN-48464
• It is also recommended to use CTA #5047 & GM Factory Tool #EN-46547
• Applications: (GM Atlas Engines) Buick, Chevrolet, GMC, Hummer, Isuzu, Oldsmobile & Saab
  • I6 - LL8 (Vortec 4200)
  • I5 - L52 (Vortec 3500)
  • I5 - LLR (Vortec 3700)
  • I4 - LK5 (Vortec 2800)
  • I4 - LLV (Vortec 2900)
